| Model |
UV430 E0 |
UV430 E2 |
UV430 E3 |
| Camera Lens Parameter |
| Optical Zoom |
12X |
25X |
31X |
| Focal Length |
f = 3.85mm ～ 43.06 mm ±5% |
f = 7.1 mm～ 171.95 mm ±5% |
f = 6.91 mm～ 214.64 mm ±5% |
Viewing
Angel |
Horizontal: 7.59˚ (N)～80.4˚ (W）
Vertical: 4.6˚ (N) ～ 50.0 (W) |
Horizontal: 2.5˚ (N)～59.2˚ (W）
Vertical: 1.4˚ (N) ～ 34.6˚ (W)
|
Horizontal: 1.98˚ (N)～ 59˚(W）
Vertical：1.12˚(N) ～ 34.14˚ (W) |
| Iris Value |
F1.8 ～ F3.56 ±5% |
F1.61 ～ F5.19 ±5% |
F1.35 ～F4.6 ±5% |
| Image Sensor |
1/2.5 inch SONY CMOS sensor |
1/1.8 inch SONY CMOS sensor |
| Video Format |
HDMI：
3840*2160P60/50/25/59.94/29.97;1080P60/50/ 30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/59.94；
SDI：
1080P60/50/30/25/59.94/29.97;1080P60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG： 3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/ 640*480 /640*360 /352*288/320*240P30;
H264： 3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/ 640*480 /640*360 /352*288/320*240P30;
H265： 1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576 /640*480 /640*360 /352*288/320*240P30;
YUY2： 800*448 /720*480P25; 640*360 /432*240P30
NV12： 800*448P25; 640*480 /640*360 /432*240P30
|
Minimum
Illumination |
0.05Lux (F1.8, AGC ON) |
| DNR |
3D DNR |
| White Balance |
Auto / Manual/ One Push/ Specified Temperature |
| Focus |
Auto/Manual/One Push Focus |
| Exposure Mode |
Auto/Manual/Shutter priority/Aperture priority/brightness priority |
| Aperture |
F1.8 ～ F11, CLOSE |
| Shutter Speed |
1/25～1/10000 |
| BLC |
ON/OFF |
| WDR |
OFF/ Dynamic level adjustment |
| Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma Curve |
| SNR |
≥50dB |
| AI Function |
| Real-time Tracking Mode |
The longest tracking distance can reach 6-7 meters, which can support the speaker to walk at a speed of 1.3-1.7m/s. |
| Zone Tracking Mode |
4 tracking zones are available, which can be set within -110°～+110° in horizontal and 30°～+30°(430E0) in vertical or 27°～+27°(430E2,430E3) in vertical |
| Interface Parameter |
| Interface Parameter |

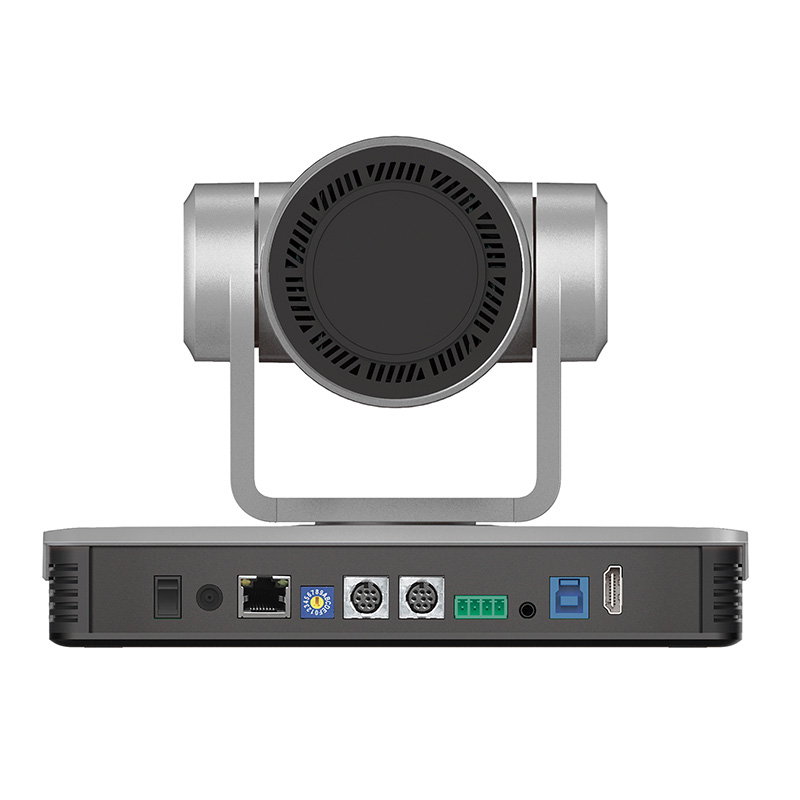

HDMI, SDI, LAN(Support POE), USB2.0, A-IN, RS232-IN,RS232-OUT, RS422 Compatible with RS 485, Rotary DIPswitch, DC12V Power Supply, Power Switch |
| Video Compression Format |
LAN： H.264, H.265
USB 2.0： MJPG, H264, H.265, YUY2, NV12 |
| Audio Input |
Double track 3.5mm linear input |
| Audio Input |
HDMI, LAN, USB |
Audio Compression
Format
|
AAC |
| LAN Jack |
10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output |
| Network Protocols |
RTSP/RTMP,ONVIF,GBT28181 Support network VISCA control protocol; Support remote upgrade, remote restart, remote reset |
| Control Jacks |
RS232-IN,RS232-OUT, RS422 compatible with RS485 |
| Serial Port Communication Protocols |
VISCA/Pelco-D/Pelco-P；
Support Baudrate: 115200/38400/9600/4800/2400 |
USB Communication Protocol
|
UVC (Video Communication Protocol )， UAC （ Audio Communication Protocol） |
| Power Supply |
HEC3800 Outlet (DC12V) |
| Power Adapter |
AC110V~AC220V to DC12V/2.5A |
Input Voltage
|
DC12V±10% |
| Input |
<1A |
| Consumption |
<12W |
| PTZ Parameter |
| Pan Move |
-110°～+110° |
| Tilt Move |
-30°～+30° |
| Pan Speed |
0.1°/s～100°/s |
| Tilt Speed |
0.1°/s～70°/s |
| Preset Speed |
Pan: 78.8°/s, Tilt: 31.7°/s |
| Preset Quantity |
Up to 255 preset (10 via remote control) |
Other Parameter
|
| Storage Temperature |
-10℃～+60℃ |
| Storage Humidity |
20%～95% |
Working Temperature
|
-10℃～+50℃ |
| Working Humidity |
20%～80% |
| Dimension |
220(L)mm*144mm(W)*159mm(H) |
| Weight |
1.7kg |
| Environment |
Indoors |
