| Camera Lens |
| Image Sensor |
1/2.8 inch high quality HD CMOS sensor |
| Effective Pixel |
16:9, 8.51 megapixel |
| Video Signal |
HDMI: 4KP30 /4KP25 /1080P60 /1080P50 /1080P30 1080P25 / 720P60 /720P50 /1080P59.94 /1080P29.97 /720P59.94
SDI: 1080P60 /1080P50 /1080P30 /1080P25 /720P60 /720P50 /1080P59.94 /1080P29.97 /720P59.94
USB3.0:
Main Stream:
YUY2/NV12:
1920×1080@10/5fps;1280×720@25/20/15/10/5fps; 1024×576 /800×600 /800×448 /640×360 /480×270 /320×180@30/25/20/15/10/5fps;
MJPG/H264:
3840x2160/2560×1440/1920×1080/1600×896/1280×720/1024×576 /960×540 /800×600 /800×448 /720×576 /720×480 /640×360 /640×480 /480×270 /352×288 /320×240@30/25/20/15/10/5fps;
Sub Stream:
YUY2/NV12:
1280×720 /1024×576 /800×600 /800×448 /640×360 /640×480 /480×270 /320×180@30/25/20/15/10/5fps;
MJPG/H264:
1920×1080 /1600×896 /1280×720 /1024×576 /960×540 /800×600 /800×448 /720×576 /720×480 /640×360 /640x480 /480×270 /352×288 /320× 240@30/25/20/15/10/5fps;
|

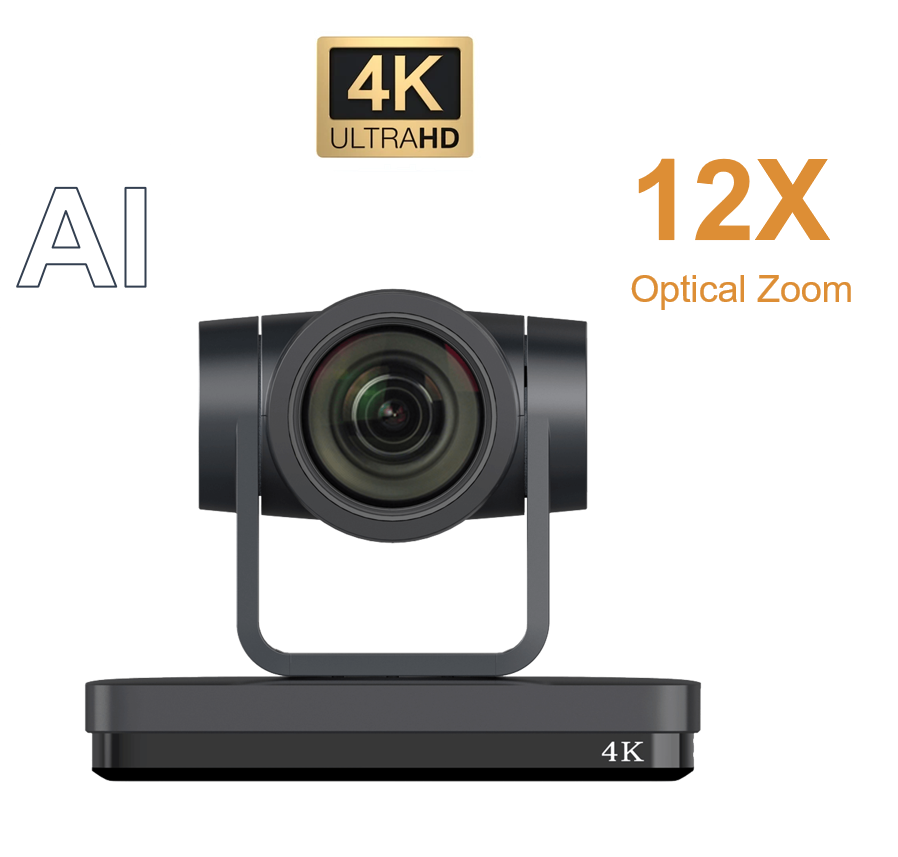

| Optical Zoom |
12X |
| Viewing Angle |
H： 6.5°（N）～70.9°（W） |
| Focal Length |
3.9～46.8 mm ± 5% |
| Iris |
F1.6 ～ F2.8± 5% |
| Minimum Illumination |
0.5Lux(F1.8, AGC ON) |
| DNR |
2D﹠ 3D |
| White Balance |
Auto/Manual/One-push/Specified Color Temperature |
| Focus |
Auto/Manual/One-push |
| Exposure Mode |
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Iris Mode |
F1.8 ～ F11, CLOSE |
| Shutter Speed |
1/25～1/20000 |
| BLC |
On/off |
| Dynamic Range |
Off, 1 ～ 8 |
| Video Adjustment |
Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve |
| SNR |
>50dB |
| Interface Parameter |
| Interfaces |
HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Dial Switch, Power Switch |
| Video Output |
HDMI, SDI, LAN, USB3.0 |
Video Compression Format
|
LAN： H.264, H.265
USB 3.0： MJPG, H264, YUY2, NV12 |
| Audio Input Interface |
Double track 3.5mm linear input; |
| Audio Output Interface |
HDMI, SDI, LAN, USB3.0 |
Audio Compression Format
|
AAC, MP3, G.711A |
| LAN Interface |
10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output. |
| Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset |
| Control Interface |
RS232-IN, RS232-OUT, RS422 compatible with RS485 |
Serial Port Communication Protocols
|
VISCA/Pelco-D/Pelco-P；
Support Baudrate: 115200/38400/9600/4800/2400 |
USB Communication Protocol
|
UVC (Video Communication Protocol), UAC (Audio Communication Protocol） |
| Power Supply |
HEC3800 Power Socket(DC12V) |
| Power Adapter |
Input: AC110V~AC220V ； Output: DC12V/2.5A |
| Input Voltage |
DC12V±10% |
| Input |
<1A |
| Consumption |
<12W |
| PTZ Parameter |
| Pan Move |
-170°～+170° |
| Tilt Move |
-30°～+30° |
| Pan Speed |
0.1°/s～60°/s |
| Tilt Speed |
0.1°/s～45°/s |
| Preset Speed |
Pan： 60°/s, Tilt： 45°/s |
| Preset Quantity |
Up to 255 preset (10 via remote control) |
| Other Parameter |
| Storage Temperature |
-10℃～+70℃ |
| Storage Humidity |
20%～95% |
Working
Temperature |
-10℃～+50℃ |
| Working Humidity |
20%～80% |
| Dimension |
181 mm (L) × 115mm (W）× 149mm（D） |
| Weight |
1.2kg |
| Environment |
Indoors |
| Accessory |
| SuppliedAccessory |
Power Adapter, RS232 Control Cable, USB3.0 Connection Cable, Remote Control, User Manual. |
| Optional Accessory |
Mounting Bracket |
| AI Function |
| Real-time Tracking |
The longest tracking distance of up to 6 to 7 meters, can support the speaker to walk at 3 to 4 mph |
| Zone Tracking |
Support setting 4 tracking areas, and the areas is set within -170°～+170° in horizontal and -30°～+90° in vertical. |
| Select Tracking Target |
Select and frame tracking target through clicks and dragging with mouse on webpage |
